2024 RANGER 1000 CREW

THE EVERYDAY WORKHORSE

Get more value for your hard-earned dollar with the capability, comfort and durability of the RANGER 1000.
OVERVIEW SHOPPING TOOLS CAPABILITY SPECS GET AN INSTANT QUOTE

2024 RANGER 1000 CREW

SEATING OPTIONS

3 SEAT

SAGEBRUSH GREEN

SPECS

SEE MORE

1000 STANDARD FEATURES:

  • 61 HP ProStar Engine
  • 2,500 Lb. Towing Capacity & 1,000 Lb. Box Capacity
  • 12" Ground Clearance
  • 25" Tires
  • 12" Stamped Steel Wheels
  • RIDE COMMAND+ with Accessory Purchase
Subcribe to newsletter

SHOPPING TOOLS

GET A QUOTE
FIND A DEALER

CAPABILITY

Get more done in a day with RANGER 1000. Its purpose-built single overhead cam (SOHC) engine delivers smooth, quiet power and outstanding low speed performance to help you and your crew get the job done.

Ready for Rough Jobs

Take on rugged terrain with confidence thanks to a full-body skid plate, massive front bumper and CV guards that protect wheels and control arms from rocks and sticks.

Built to Last

RANGER 1000 is built with a strong one-piece chassis and beefed up front drive to take on the toughest jobs, day in and day out.

Quieter Ride

Keep mud, dirt, and water out so your machine runs quieter and enjoy hassle-free maintenance with sealed suspension bushings.

SPECS

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
61 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg)
Estimated Dry Weight
1,640 lbs. (744 kg)
Fuel Capacity
11.35 gal (43 L)
Ground Clearance
12 in (30.5 cm)
GVW
3,750 lb (1,701 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver

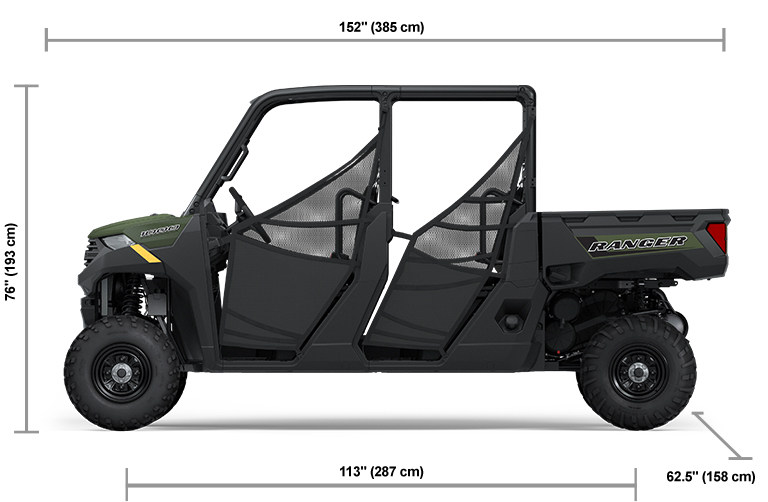

Overall Vehicle Size (L x W x H)
152 x 62.5 x 76 in. (386 x 158 x 193 cm)
Payload Capacity
1750 lbs. [CA: 1350 lbs.]
Person Capacity
6
Water Fording Height
Equal to the Floorboards
Wheelbase
113 in (287 cm)

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride®
Color / Graphics
Sagebrush Green
Electronic Power Steering
Not Equipped
Gauge
B1
Instrumentation
4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet
Lighting
Halogen Headlamps, 55W Low Beam, 60W High Beam, Dual LED Taillamps
Other Standard Features
Polaris Pulse Electrical System (3 position), Standard In-Dash SAE Charge Port
RIDE COMMAND+
Available
Tilt Steering
Standard

Front Tires
25 x 10-12; Carlisle 489
Rear Tires
25 x 11-12; Carlisle 489
Tire Ply Rating
4 Ply Rated
Wheels
Stamped Steel

Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Turning Radius
204 in. (518.16 cm)

61

HP

62.5"

WIDTH

12"

GROUND CLEARANCE
