2024 RANGER XP 1000 PREMIUM

TASK TO TRAIL VERSATILITY

Finish the biggest jobs and ride the toughest trails with the RANGER XP 1000, built with capability, comfort, and strength.
OVERVIEW SHOPPING TOOLS CAPABILITY SPECS GET AN INSTANT QUOTE

2024 RANGER XP 1000 PREMIUM

SEATING OPTIONS

POLARIS PURSUIT CAMO

SPECS

SEE MORE
  • 82 HP ProStar Engine
  • 2,500 Lb. Towing Capacity & 1,000 Lb. Box Capacity
  • 13" Ground Clearance
  • 11" Suspension Travel
  • 27" 8-ply Pro Armor X-Terrain tires & 14" wheels
Subcribe to newsletter
  • 3-Mode Throttle Control
  • LED Headlights
  • 6-Position Polaris Pulse Bus Bar
  • RIDE COMMAND+ with Accessory Purchase

SHOPPING TOOLS

GET A QUOTE
FIND A DEALER

CAPABILITY

Whether you’re hauling supplies, towing a trailer or riding with a party of 6, the RANGER XP 1000 is ready for it. A dual overhead cam (DOHC) engine delivers 82 horsepower and a three-mode throttle control lets you optimize power for the task at hand.

Performance with Precision

Stay smooth and in control on the job or trail with 3-position, user-selectable throttle control with available Performance, Standard and Work modes. Select Performance for more throttle response and Work for better low-speed control.

Confidently Secure Cargo

You can haul more, more securely with multiple standard tie-down points to ensure your load stays secure, even in rugged terrain.

Maximize Your Space

The cargo box perfectly fits four 5-gallon buckets across in a single row to deliver maximum usefulness.

SPECS

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder SOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg)
Estimated Dry Weight
1,625 lb (737 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
13 in (33 cm)
GVW
3,600 lb (1,632.9 kg)
Hitch Towing Rating
2,500 lb (1,134 kg)
Hitch Type
Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H)
120 x 62.5 x 77 in (305 x 158 x 196 cm)
Payload Capacity
1,500 lbs (680.4 kg)
Person Capacity
3
Water Fording Height
Equal to the Floorboards
Wheelbase
81 in (206 cm)

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Color / Graphics
Polaris Pursuit Camo
Electronic Power Steering
Standard
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 1 DC Outlet, 1 USB Charge Port
Lighting
Dual LED Headlamps, 1250 lm Low Beam, 2300 lm High Beam, Dual LED Taillamps
Other Standard Features
Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), Standard In-Dash SAE Charge Port, NFC Front Badge
RIDE COMMAND+
Available
Tilt Steering
Standard

Front Tires
27 x 9-14; Pro Armor X-Terrain
Rear Tires
27 x 11-14; Pro Armor X-Terrain
Tire Ply Rating
8 Ply Rated
Wheels
14" Aluminum

Front Suspension
Dual A-Arm 11 in (27.9 cm) Travel
Rear Suspension
Dual A-Arm, IRS 11 in (27.9 cm) Travel
Turning Radius
13.3 ft (406.4 cm)

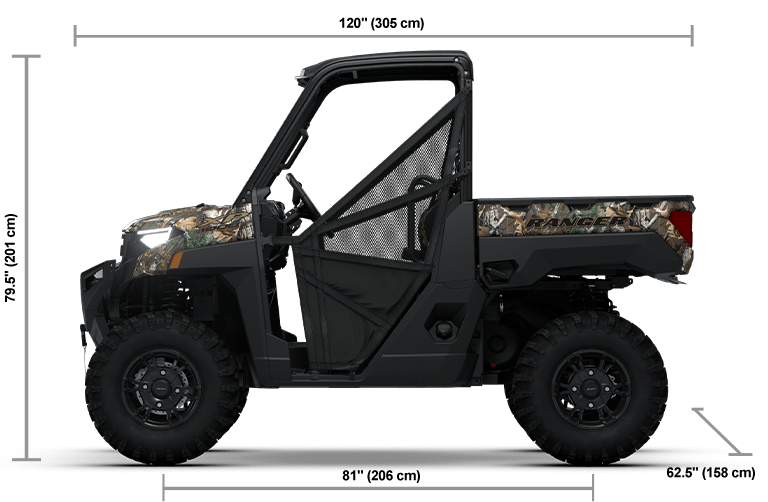

82

HP

62.5"

WIDTH

13"

GROUND CLEARANCE
