Take charge of the off road with the do-it-all capability and strength of the Sportsman 850.
Tow Heavy Loads
You can tow, pull and haul heavy loads in order to finish big jobs, or get all your gear to camp in one trip, thanks to a massive 1,500 lb. of towing capacity. Plus, the Sportsman 850 Ultimate Trail comes with 3,500 lb. Polaris HD Winch with Synthetic Rope.
All-Weather Reliability
Extreme cold, heat or precipication won't slow you down thanks to the cranking power of the industry's largest 30 A.H. battery and quick-start reliability of Electronic Fuel Injection (EFI).
Power Through the Elements
Chase more trails with the power, traction and ground clearance to tame the wildest terrain.
SPECS
Active Descent Control
Equipped
Cooling
Liquid
Cylinders Displacement
2 / 850cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Equipped
Engine Type
ProStar 4-Stroke SOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection / 400 CCA
Horsepower
78 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
791 lbs (359 kg)
Front/Rear Rack
120 lb (55 kg)/240 lb (110 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
12 in (30.5 cm)

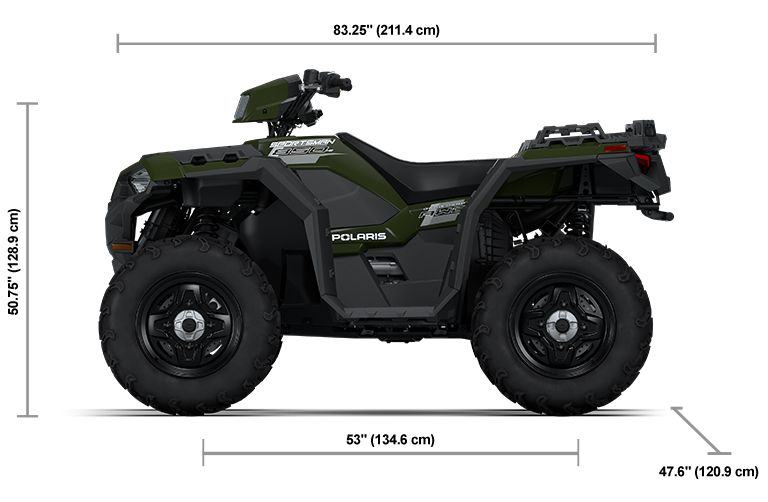

Overall Vehicle Size (L x W x H)
83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lb (261 kg)
Person Capacity
1
Seat Height
37 in (94 cm)
Wheelbase
53 in (134.6 cm)
Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Cargo System
Lock & Ride, 4 Gal (15 L) Front Dry Storage 2 Gal (8 L) Rear Storage
Hitch Towing Rating
1,500 lb (680 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Color / Graphics
Crimson Metallic
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
50w High Beam, Dual 50w Low Beam Headlights, Dual LED Brakelights/Taillights
Other Standard Features
6 Moveable Tie-Down Points, In Pod Battery Charge Port, Painted Plastics, Fender Flares
RIDE COMMAND+
Available
Electronic Power Steering
Multi Select EPS
Front Tires
26 x 8 CST
Rear Tires
26 x 10 CST
Wheels
14 in. (35.6 cm) Steel
Front Suspension
Straight Dual A-Arm 9 in (22.9 cm) Travel
Rear Suspension
Straight Dual A-Arm, Rolled IRS, 10.25 in (26 cm) Travel
