2024 SPORTSMAN 570 EPS

TASK TO TRAIL VERSATILITY

Delivering performance, reliability, and legendary ride and handling for added comfort from task to trail.
OVERVIEW SHOPPING TOOLS CAPABILITY SPECS GET AN INSTANT QUOTE

2024 SPORTSMAN 570 EPS

SAGE GREEN

SPECS

SEE MORE

EPS TRIM INCLUDES:

  • 8.2"/9.5" Front/Rear Suspension Travel
  • 25" Tires with 12" Steel Wheels
  • RIDE COMMAND+ with Accessory Purchase
  • Front CV Guards
  • Multi-Select Electronic Power Steering
  • Front Trail Bumper
  • Braking System (EBS)
  • Dual Taillights
  • Front & Rear Rack Extenders
Subcribe to newsletter

570 STANDARD FEATURES:

  • On-Demand All-Wheel Drive
  • 11.5" Ground Clearance
  • Factory-Installed Hitch Receiver
  • 1,350 Lb. Towing Capacity
  • Combined 270 Lb. Front & Rear Rack Capacity
  • 44 HP Engine

SHOPPING TOOLS

GET A QUOTE
FIND A DEALER

CAPABILITY

Legendary Sportsman suspension delivers the smoothest ride to absorb bumps of all sizes.

SUSPENSION

Independent rear suspension delivers more traction and helps you ride over even bigger obstacles.

On-Demand AWD

Polaris On-Demand AWD delivers instant power when the slightest wheel spin is detected.

Best Clearance

Equipped with 11.5" of ground clearance to help you travel smoothly over rough terrain.

Plush Travel

Enjoy a smooth ride on the trail with 9.5" of rear travel.

SPECS

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection / 340 CCA
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting

Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
760 lb (345 kg)
Front/Rear Rack
90 lb /180 lb (40.8 kg /81.6 kg)
Fuel Capacity
4.5 gal (17.0 L)
Ground Clearance
11.5 in (29 cm)

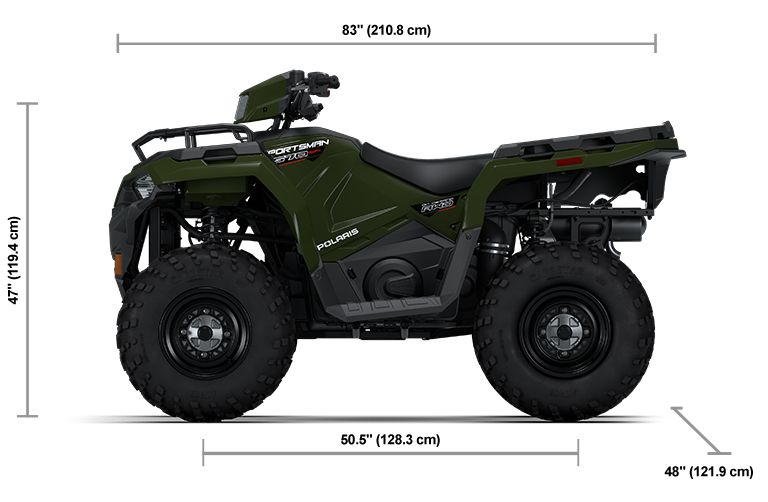

Overall Vehicle Size (L x W x H)
86 x 48 x 48 in (218.4 x 121.9 x 121.9 cm)
Payload Capacity
485 lb (220 kg)
Person Capacity
1
Seat Height
33.25 in (84.5 cm)
Wheelbase
50.5 in (128.3 cm)

Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Cargo System
Lock & Ride Compatible 5 Gal (18.9L) Front Dry Storage
Hitch Towing Rating
1,350 lb (612 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Color / Graphics
Desert Sand
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Lighting
Halogen Pod & Bumper Lights, Triple 50w High Beams, Dual 50w Low Beams, Single LED Brake Light/Taillight
Other Standard Features
Front Rack Extender, 12 Volt Power Plug, Pre-Wired for Hand & Thumb Warmers, In Pod Battery Charger, Winch Mount Included
Other Standard Features
Available

Electronic Power Steering
Multi Select EPS
Front Tires
25 x 8-12; 489
Rear Tires
25 x 10-12; 489
Wheels
12 in. (30.5 cm) Steel

Front Suspension
Sealed MacPherson Strut With 8.2 in (20.8 cm) Travel
Rear Suspension
Sealed Dual A-Arm, IRS 9.5 in (24.1 cm) Travel

44

HP

48"

WIDTH

11.5"

GROUND CLEARANCE
