The all-new RZR XP is the next revolution in multi-terrain performance. With a rugged design, more comfort and legendary performance, the RZR XP is built to take on the off road.
The next revolution of RZR DNA with responsive performance, traction and clearance, and trail agility to take on the off road.
Smooth, Responsive Power
A new lower gear ratio helps to deliver the ProStar power to the ground in a smooth, responsive manner. This delivers improved handling in tight and technical terrain.
Get Around Obstacles
The new geared reverse provides additional strength as compared to a traditional chain-driven reverse to add confidence to your day when backing out of technical trail situations.
Choose Your Line with Ease
The all-new RZR XP features a lower front hood and fenders for improved sightlines, allowing you to see more of the trail in tight quarters and choose your line.
SPECS
Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance True On-Demand AWD/2WD
Driveline Features
Not Equipped
Engine Type
ProStar 1000 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
114 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H with Geared Reverse and High-Strength Clutch
Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lb (136.1 kg)
Curb Weight
2085 lbs. (946kg) CA 2092 lbs. (949 kg)
Estimated Dry Weight
1,995 lbs. (905 kg) CA 2,002 lbs. (908 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
16" (40.6 cm)
Hitch Type
N/A

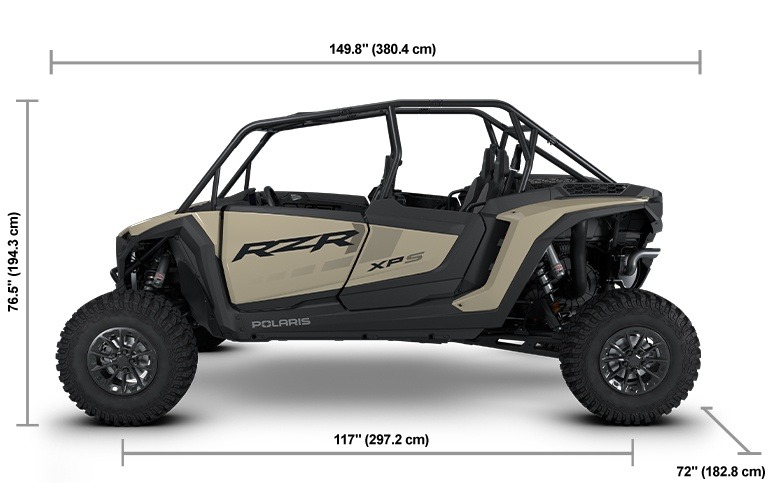

Overall Vehicle Size (L x W x H)
149.8 x 72 x 76.5"
Payload Capacity
900 lbs. (408.2 kg)
Person Capacity
4
Towing Capacity
N/A
Turning Radius
24.5 in
Wheelbase
117" (297.2 cm)
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission
Audio System
Not Equipped, Accessory Options Available
Connected Vehicle Services
Not Equipped, Accessory Options Available
Rear Camera
Not Equipped, Accessory Options Available
Security
Polaris P.A.S.S. Anti-Theft System
Touch Screen Display
Not Equipped, Accessory Options Available
Front Tires
Pro Armor Trekker; 2.0 32 x 10-15 Radial Tire
Rear Tires
Pro Armor Trekker; 2.0 32 x 10-15 Radial Tire
Tire Ply Rating
8-Ply
Wheels
15" Cast Aluminum Rim with 5-Lug Pattern
Electronic Suspension Control System
Not Equipped
Front Shocks
2.5" Walker Evans® Needle Shocks with 16-Position Adjustable Clickers
Front Suspension
Dual A-Arm with Stabilizer Bar and 25 in (63.5 cm) Usable Travel*, 19 in (48.3 cm) of Wheel Travel
Rear Shocks
2.5" Walker Evans® Needle Shocks with 16-Position Adjustable Clickers
Rear Suspension
Trailing Arm with Stabilizer Bar and 25" (63.5 cm) Usable Travel*, 21" (53.3 cm) of Wheel Travel
Cargo System
Lock & Ride
Door Type
Half Doors
Vehicle Protection
Front Bumber
Wynch
Not Equipped
Electrical System
660-W Charging System @ 3,000 RPM, 6-Position PULSE Bar
Lighting
LED Headlights & Taillights, Illuminated In-Cab Controls
Cab Components
Half Doors
Drive Modes
Rock, Standard, Sport
Driver Instrumentation
Center Mounted Information Center W/ 4" Color Display + Rotary Speedometer & Tachometers, Programmable Speed Limiting, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Dc Outlet
A wide stance (74"), turbocharged (181 HP) and easily maneuverable side-by-side delivering rugged strength straight from the factory to take on the roughest terrain.
