SPECS

Cooling

Liquid

Cylinders Displacement

1997cc

Drive System Type

Pro Performance True 2WD/4WD/4WD Lock

Engine Braking System (EBS)

Not Equipped

Engine Type

4-Stroke DOHC Inline Four Cylinder

Fuel System/Battery

Electronic Fuel Injection

Horsepower

225 HP

Transmission/Final Drive

Automatic PVT P/R/N/L/H

Bed Box Dimensions (L x W x H)

29.5 x 23.8 x 8.1 in (75 x 60.5 x 20.6 cm)

Box Capacity

300 lb (136 kg)

Estimated Dry Weight

2187 lb (992 kg)

Fuel Capacity

12 gal (45.4 L)

Ground Clearance

16 in (40.6 cm)

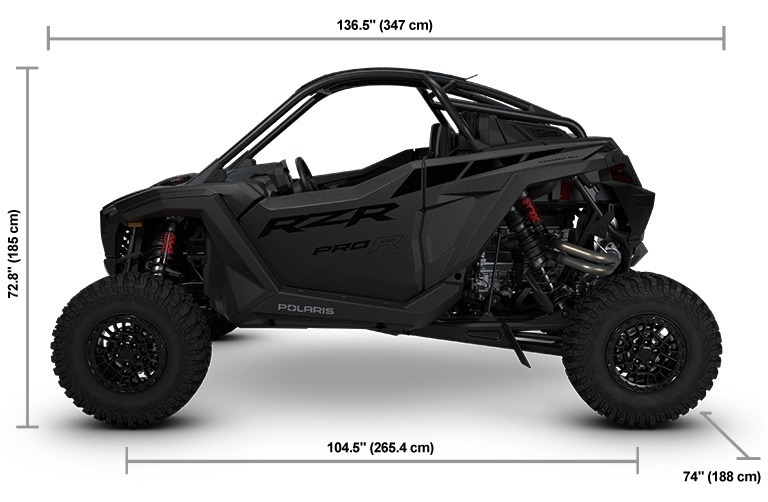

Overall Vehicle Size (L x W x H)

136.5 x 74 x 72.8 in (347 x 188 x 185 cm)

Payload Capacity

740 lb (335.6 kg)

Person Capacity

Wheelbase

104.5 in (265.4cm)

Front/Rear Brakes

4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor

Parking Brake

Park In-Transmission

Cargo System

Lock & Ride® Factory Equipped Cargo Liner

Doors

Full Doors

Electronic Power Steering

Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel with Tilt and Telescoping Adjustment; DYNAMIX DV with Integrated EPS Modes and RIDE COMMAND Push Button Controls

Hitch Type

N/A

Color / Graphics

Matte Heavy Metal

Instrumentation

7” Glove-Touch Display: Built-In GPS, Mapping, Vehicle-to-Vehicle with *Group Ride, Follow the Leader, & Messaging. Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, Rockford Fosgate® Premium Audio (Including 2 Tweeters, 2 Front Speakers, and External 400W Amp) Dual-Sweep Analog Dials with 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator

Lighting

Signature White LED, Low/High & Red LED Tail/Brake Lights; Front, Rear, and Interior Accent Lighting

Other Standard Features

RIDE COMMAND, High Output 900W Charging System, Polaris Pulse System, In-Dash Charge Port, 2 Front DC Accy Ports, Polaris P.A.S.S., Painted Aluminum Roof, Colored Toe Link, Mud and Rock Guards, , Color Matched Seats, Front Bumper

RIDE COMMAND+

Factory-Installed

Seat Type

Color-Matched Bolstered Bucket Seats with Driver 4-Way Adjustability (Including 6 in Front to Back Toolless Seat Slider with Tilt Adjustability) and Passenger Tilt Adjustability; Retractable Click-6 Harnesses

Front Tires

32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7

Rear Tires

32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7

Wheels

Painted Cast Aluminum Rim with 5-Lug Pattern

Electronic Suspension Control System

DYNAMIX DV with Selectable Ride Modes: Comfort, Rock, Track, Baja

Front Shocks

FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound)

Front Suspension

Light Weight Boxed Dual A-Arm with 3 piece Stabilizer Bar and 27.0 in (68.6 cm) *Usable Travel, 22.25 in (56.5 cm) Wheel Travel, Unitized Hubs

Rear Shocks

FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound)

Rear Suspension

Boxed Trailing Arm with Toe Link, High-Clearance Radius Rods, and 3 Piece Stabilizer Bar and 29.0 in (73.7 cm) *Usable Travel, 24.5 in (62.2 cm) Wheel Travel, Unitized Hubs

*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.

225 74"

WIDTH

16"

GROUND CLEARANCE

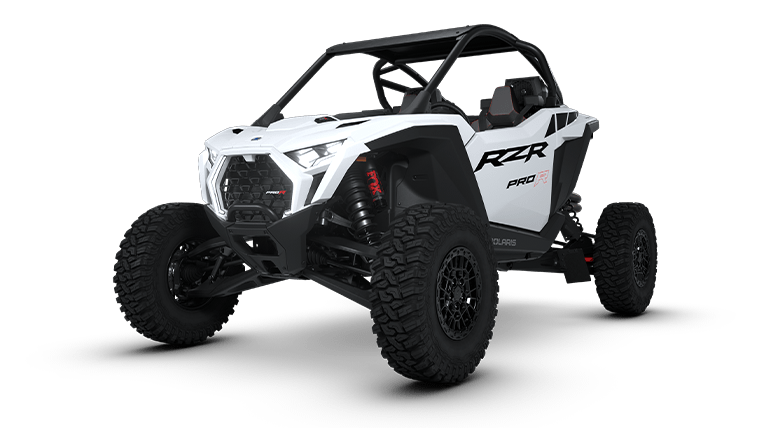

2024 RZR PRO R ULTIMATE

DOMINATE THE DESERT
