580 cc side-by-side with 2WD/4WD, a 26 L fuel tank, 285 mm ground clearance and maximum speed above 88 km/h.

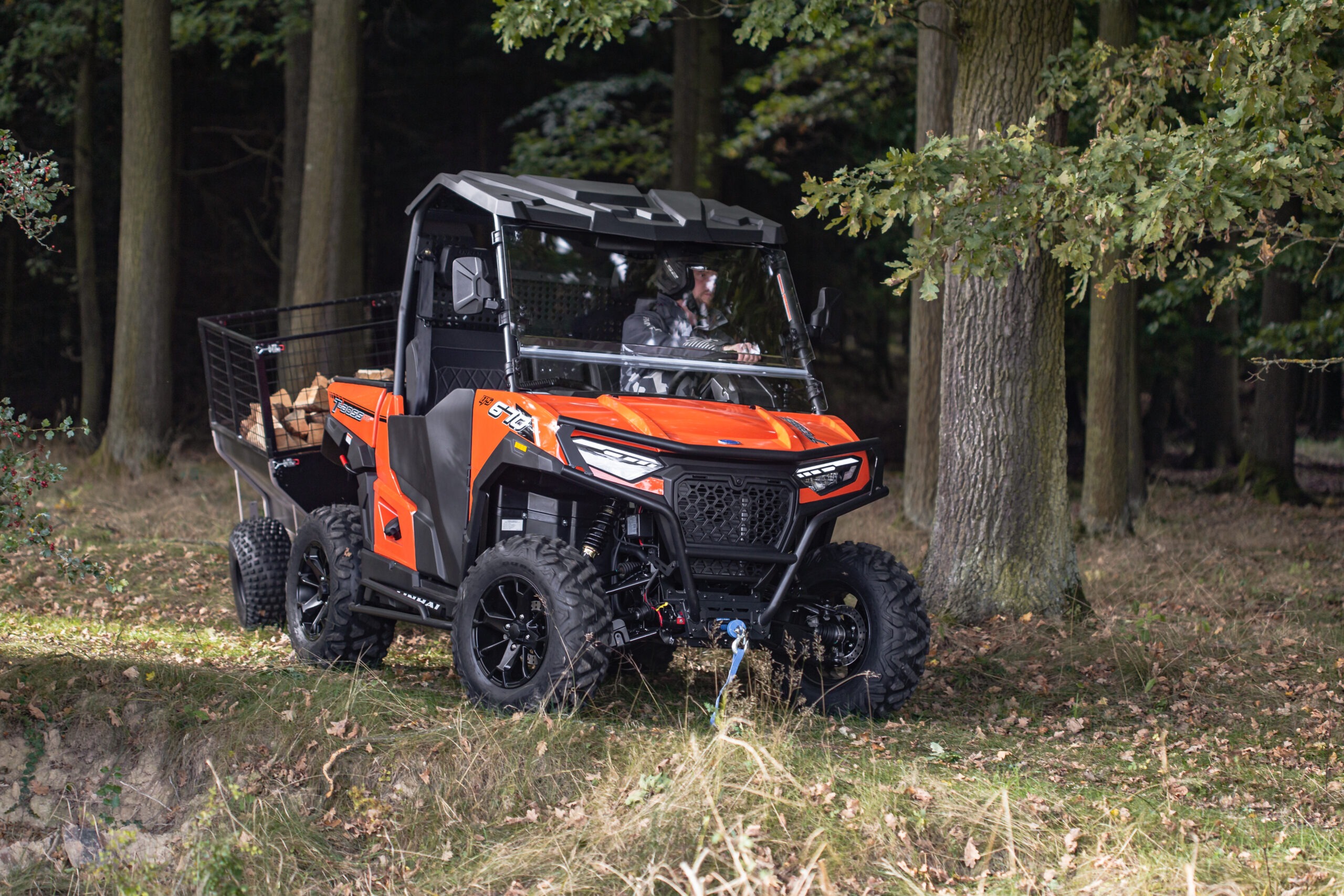

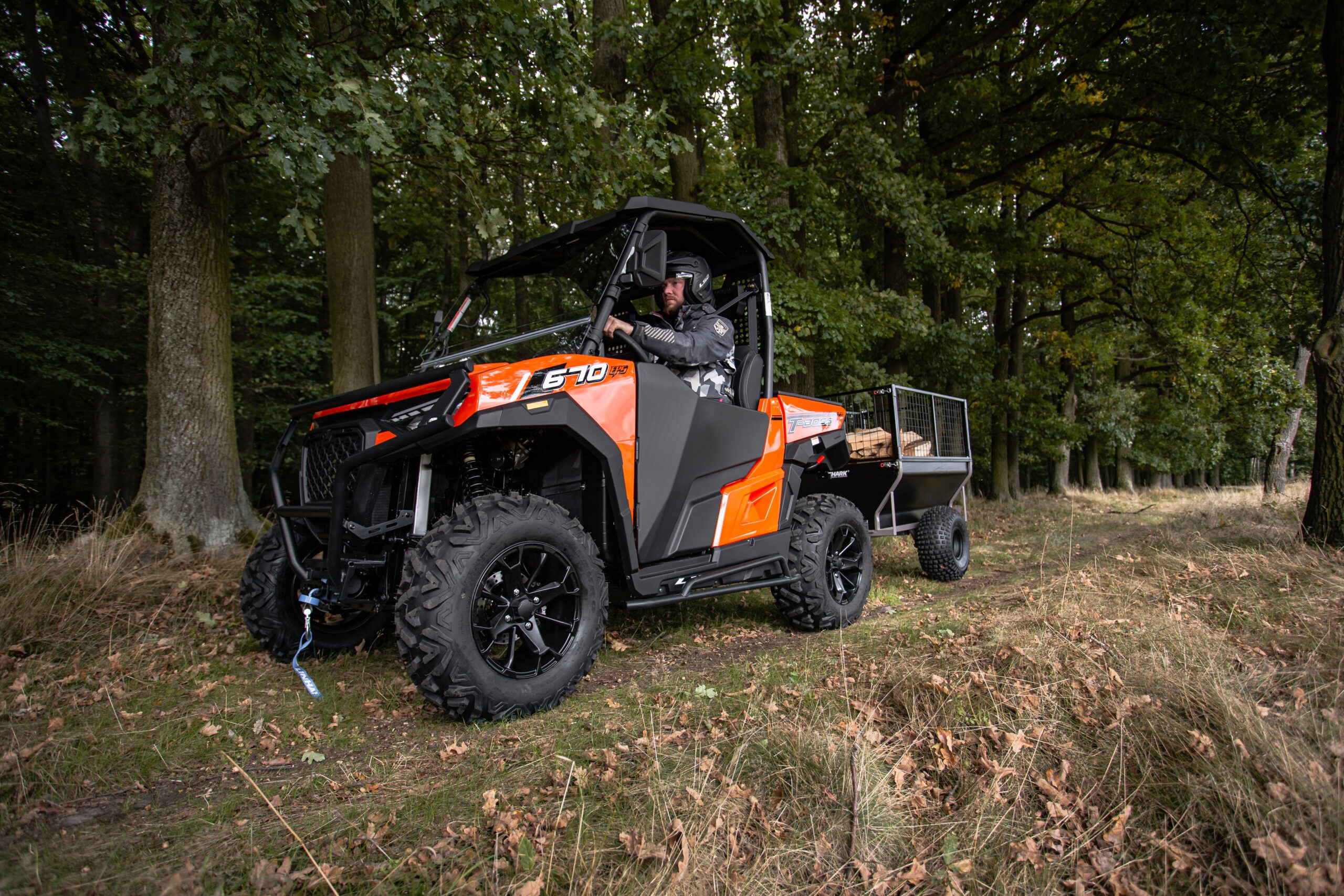

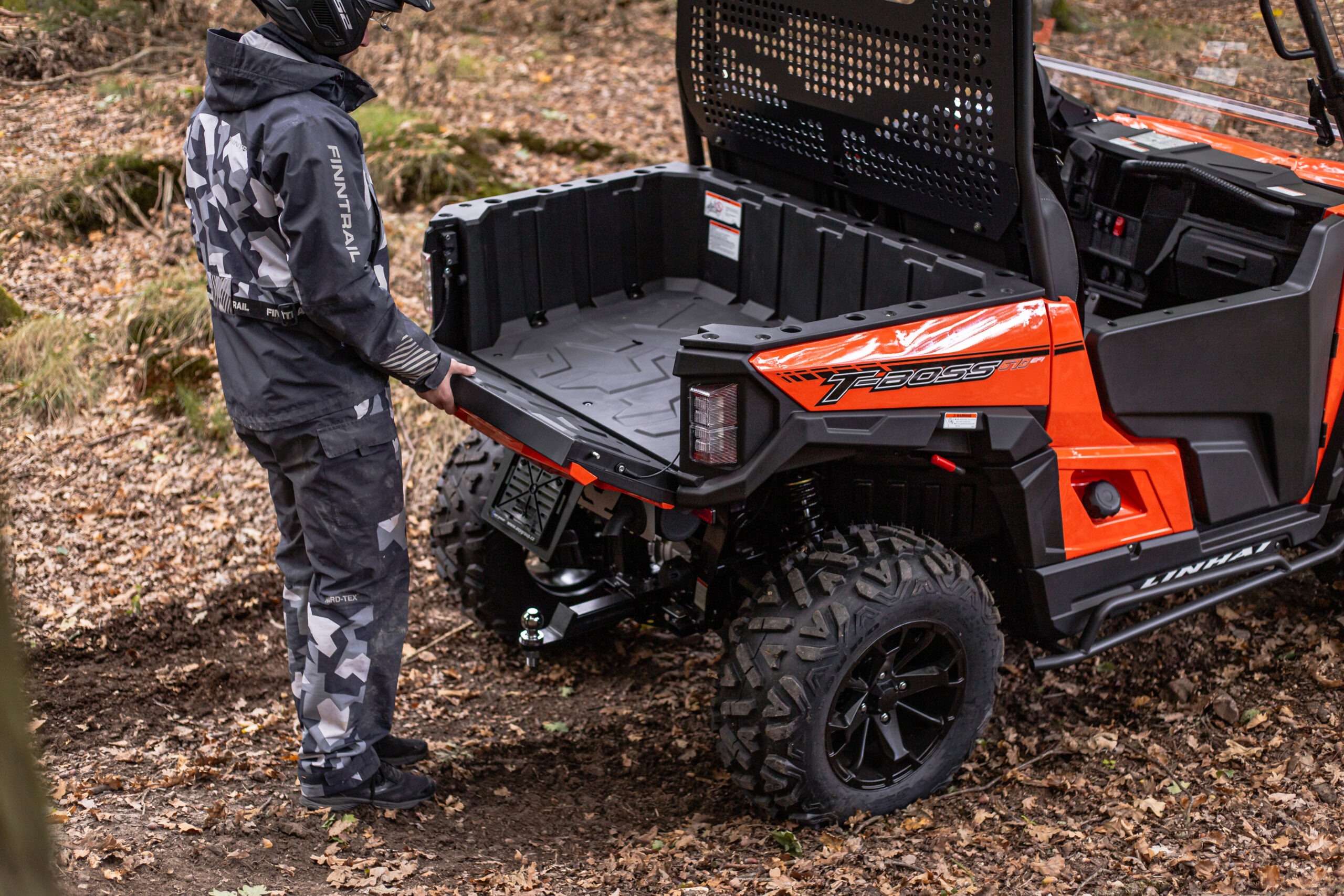

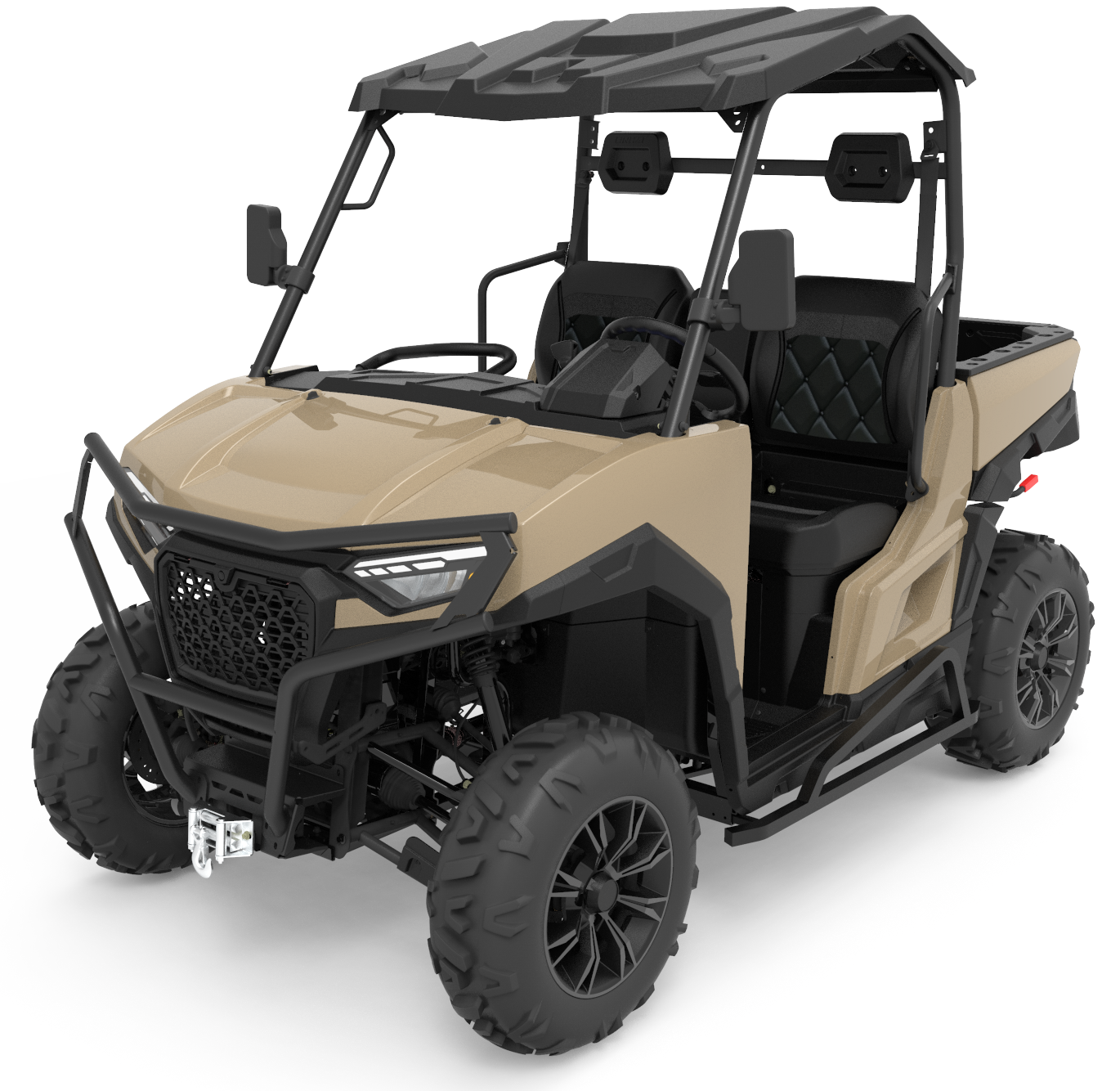

The Linhai T-Boss 670 is a 580 cc petrol side-by-side with 2WD/4WD.
Overseas specifications shown; local models may vary.
| Series | T-Boss |
|---|---|
| Product Type | UTV / Side-by-Side |
| Power Source | Petrol |
| Engine Displacement | 580 cc |
| Drive | 2WD/4WD |
| Transmission | L/H/N/R/P |
| Ground Clearance | 285 mm |
| Dimensions | 2790 x 1470 x 1920 mm |
| Model | T-BOSS 670 |
| Engine Model | LH191MS-C |
| Engine Type | Single-cylinder, four-stroke, water-cooled |
| Wheelbase | 1855 mm |
| Dry Weight | 570 kg |
| Fuel Tank Capacity | 26 L |
| Maximum Speed | >88 km/h |
| Bore x Stroke | 91 x 89.2 mm |
| Maximum Power | 32 kW @ 6, 800 r/min |
| Horsepower | 43.5 hp |
| Maximum Torque | 50 Nm @ 5, 400 r/min |
| Compression Ratio | 10.68:1 |
| Fuel System | EFI |
| Start Type | Electric starting |
| Front Tyre | 27 x 9-14 |
| Rear Tyre | 27 x 11-14 |
| Brakes | Hydraulic disc, front and rear |
| Suspension | Dual A-arms, independent suspension, front and rear |
A practical utility side-by-side with useful box capacity, dependable towing performance and turf-friendly drive selection.
