493 cc long-wheelbase side-by-side with 2WD/4WD, a 26 L fuel tank, 275 mm ground clearance and maximum speed above 70 km/h.

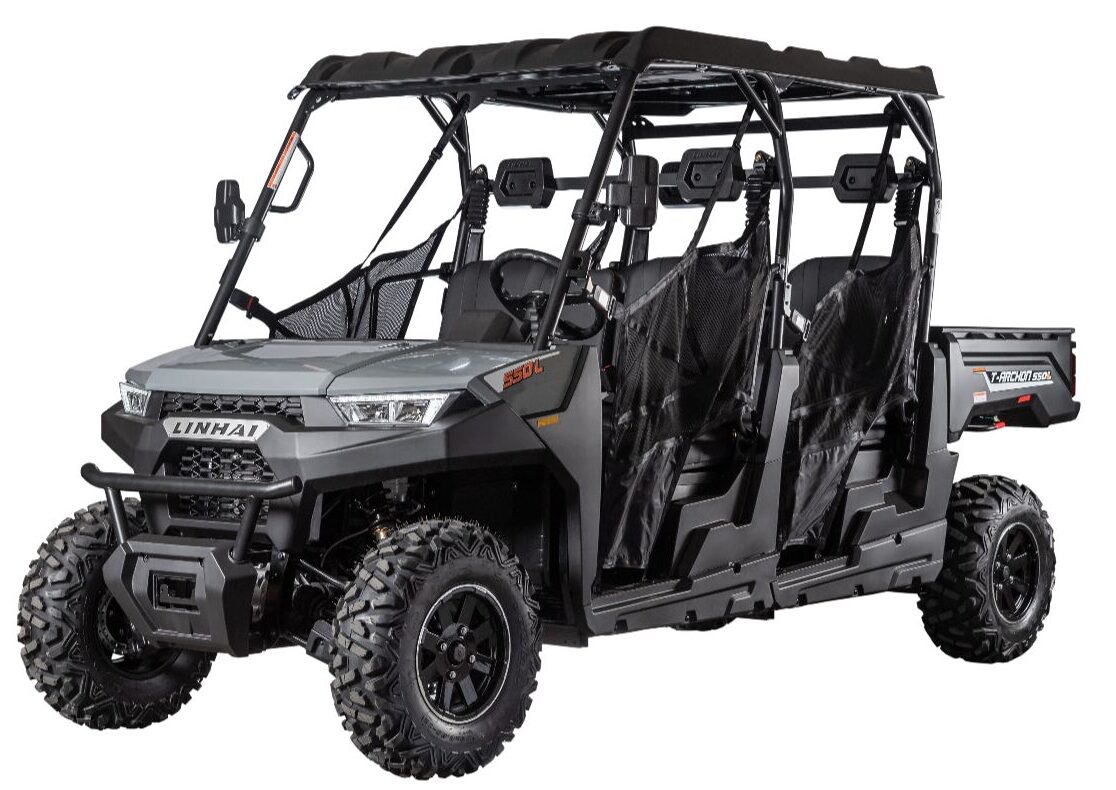

The Linhai T-Archon 550L is a long-wheelbase 493 cc petrol side-by-side with 2WD/4WD.
Overseas specifications shown; local models may vary.
| Series | T-Archon |
|---|---|
| Product Type | UTV / Side-by-Side |
| Power Source | Petrol |
| Engine Displacement | 493 cc |
| Drive | 2WD/4WD |
| Transmission | L-H-N-R |
| Ground Clearance | 275 mm |
| Dimensions | 3670 x 1470 x 1940 mm |
| Model | T-ARCHON 550L |
| Engine Model | LH188MR-2A |
| Engine Type | Single-cylinder, four-stroke, liquid-cooled |
| Wheelbase | 2730 mm |
| Dry Weight | 720 kg |
| Fuel Tank Capacity | 26 L |
| Maximum Speed | >70 km/h |
| Bore x Stroke | 87.5 x 82 mm |
| Maximum Power | 24 kW @ 6, 500 r/min |
| Horsepower | 32.6 hp |
| Maximum Torque | 38.8 Nm @ 5, 500 r/min |
| Compression Ratio | 10.2:1 |
| Fuel System | EFI |
| Start Type | Electric starting |
| Front Tyre | AT26 x 9-12 |
| Rear Tyre | AT26 x 11-12 |
| Brakes | Hydraulic disc, front and rear |
| Suspension | Dual A-arms, independent suspension, front and rear |
