352 cc side-by-side with 2WD/4WD, a 26 L fuel tank, 280 mm ground clearance and maximum speed above 62 km/h.

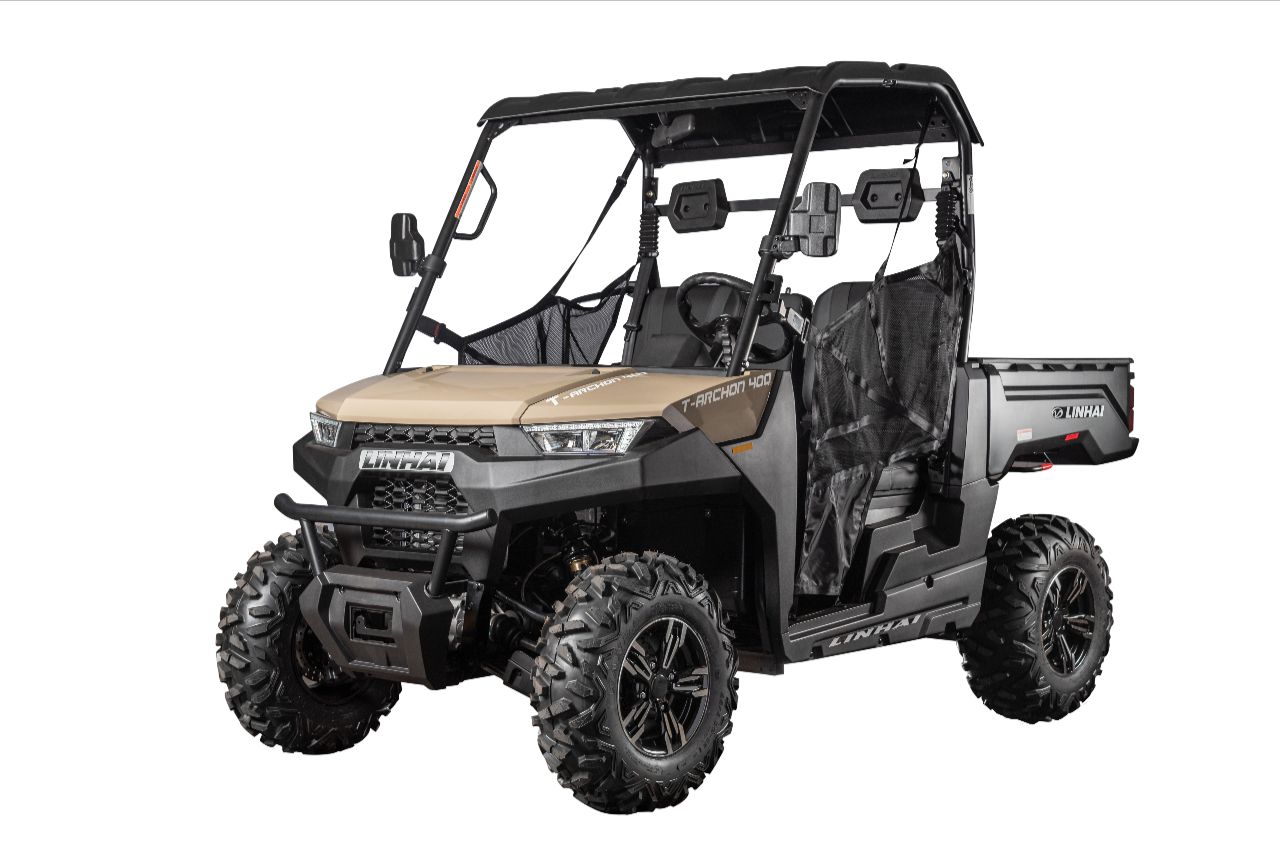

The Linhai T-Archon 400 is a 352 cc petrol side-by-side with 2WD/4WD.
Overseas specifications shown; local models may vary.
| Series | T-Archon |
|---|---|
| Product Type | UTV / Side-by-Side |
| Power Source | Petrol |
| Engine Displacement | 352 cc |
| Drive | 2WD/4WD |
| Transmission | H-N-R; N-L |
| Ground Clearance | 280 mm |
| Dimensions | 2750 x 1460 x 1860 mm |
| Model | T-ARCHON 400 |
| Engine Model | LH180MQ-3B |
| Engine Type | Single-cylinder, four-stroke, liquid-cooled |
| Wheelbase | 1890 mm |
| Dry Weight | 505 kg |
| Fuel Tank Capacity | 26 L |
| Maximum Speed | >62 km/h |
| Bore x Stroke | 80 x 70 mm |
| Maximum Power | 19 kW @ 7, 000-7, 500 r/min |
| Horsepower | 25.8 hp |
| Maximum Torque | 27 Nm @ 5, 500 r/min |
| Compression Ratio | 9.8:1 |
| Fuel System | EFI |
| Start Type | Electric starting |
| Front Tyre | AT25 x 8-12 |
| Rear Tyre | AT25 x 10-12 |
| Brakes | Hydraulic disc, front and rear |
| Suspension | Dual A-arms, independent suspension, front and rear |
