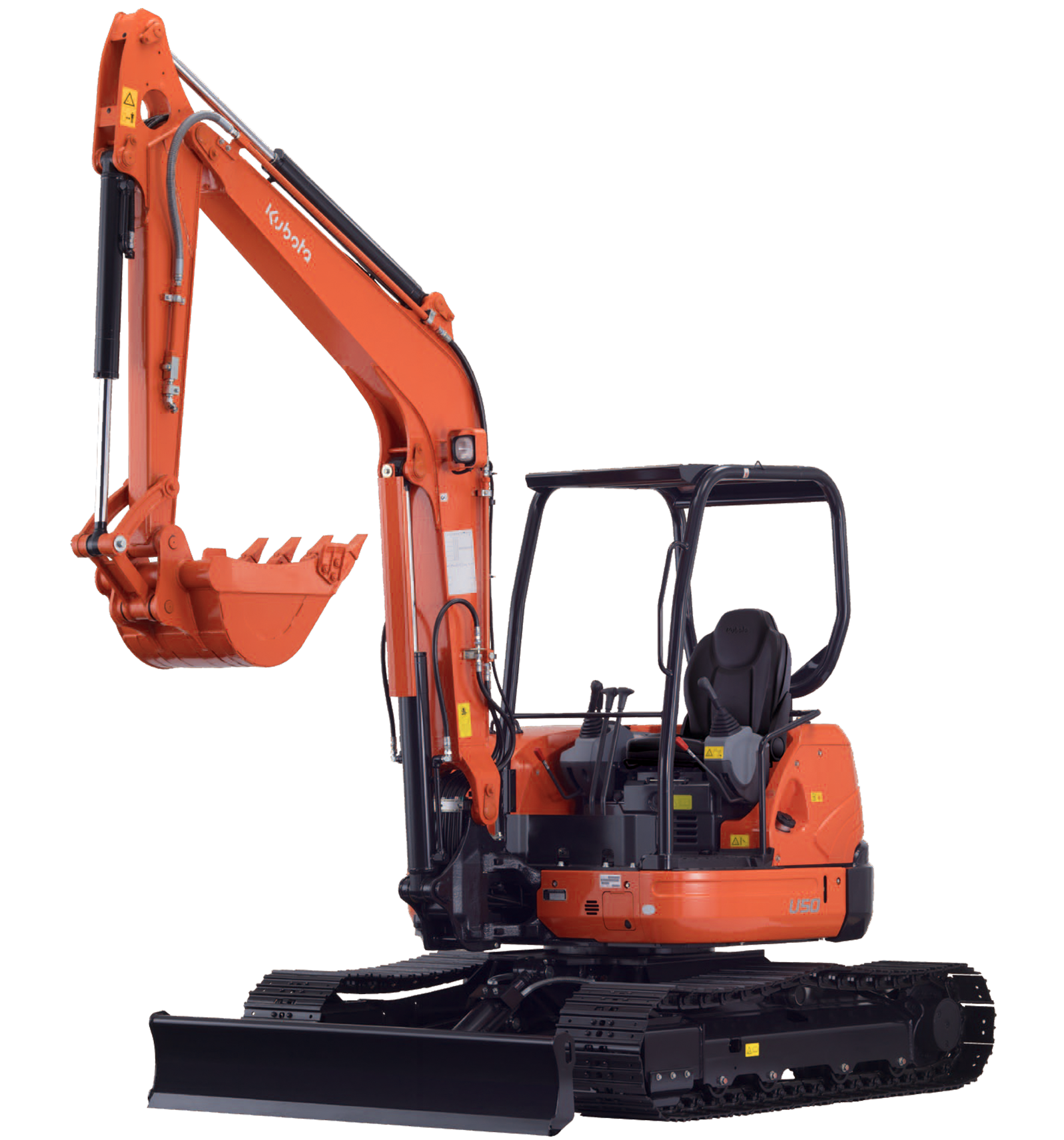

Zero-tail-swing Kubota mini excavator with up to 38.6 HP, 3,560 mm maximum digging depth, a 0.16 m³ bucket and load-sensing hydraulics.
The Kubota U50-5S combines a zero-tail-swing layout with load-sensing hydraulics and strong digging performance for demanding work where operating space is restricted.
| Engine | Kubota V2203-M |
|---|---|
| Gross output | 38.6 HP canopy / 38.2 HP cab at 2,250 rpm |
| Displacement | 2,197 cm³ |
| Operating weight | 4,780-4,940 kg depending on configuration |
| Maximum digging depth | 3,560 mm |
| Bucket capacity | 0.16 m³ |
| Bucket breakout force | 36.5 kN |
| Fuel tank | 64 L |
Request a quotation for the Kubota U50-5S.
| Cab Type | Cab, Canopy |
|---|---|
| Cooling | Water Cooled |
| Engine Cylinders | 4 |
| Fuel Type | Diesel |
| Horsepower | 20–40 HP |
