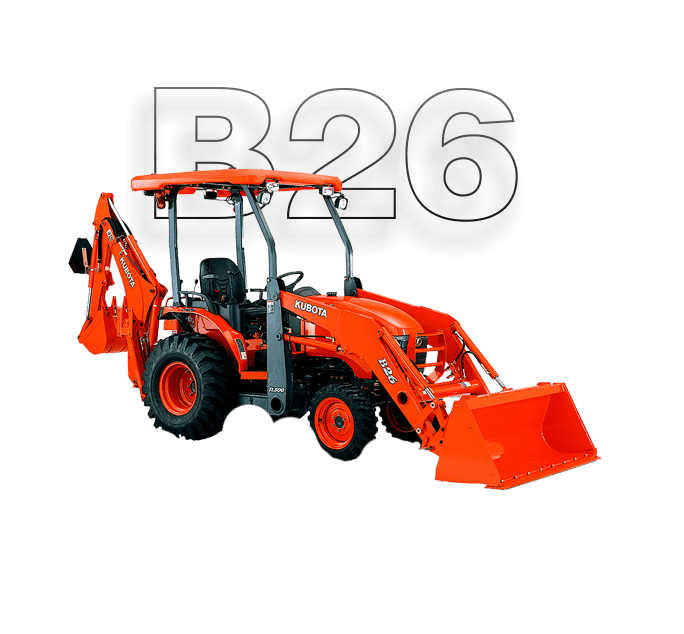

The Kubota B26 combines 18.1 kW (24.3 HP), three-range hydrostatic transmission, an integrated loader and a 2 535 mm digging depth for construction, landscaping and agricultural work.
The Kubota B26 is a compact tractor-loader-backhoe developed for construction, landscaping, agricultural and commercial applications.
| Displacement | 1 123 cm³ |
|---|---|
| PTO output | 14.5 kW |
| Fuel tank | 31 L |
| Hydraulic pump capacity | 42.3 L/min |
| Three-point lift capacity | 760 kg at 610 mm |
| Loader lift capacity | 500 kg at bucket midpoint; 590 kg at pivot pin |
| Loader breakout force | 10 417 N |
| Maximum digging depth | 2 535 mm |
| Backhoe bucket force | 18 731 N |
| Operating weight | 1 815 kg |
Overseas specifications shown; local models may vary.
| Series | TLB |
|---|---|
| Product Type | TLB |
| Horsepower | 20 – 40 HP |
| Drive | 4WD |
| Transmission | Hydrostatic |
| Cab Type | ROPS |
| Fuel Type | Diesel |
| Cylinders | 3 |
